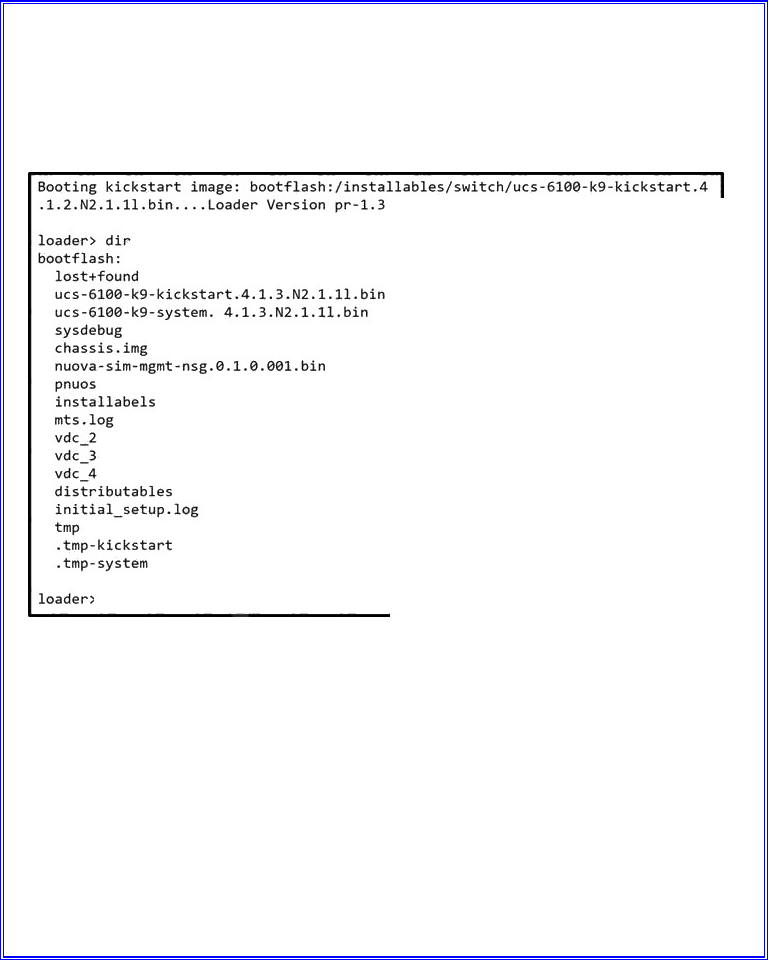

单选题 A Cisco UCS Fabric Interconnect fails during the upgrade process. The working images of the fabric interconnect are stored on the bootflash. Which set of commands recovers the fabric interconnect?
A、
loader> dirloader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# init system
switch(boot)# reload
switch(boot)# load ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
B、
oader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# copy ics-manager-k9.1.4.1k.bin nuova-sim-mgmt-nsg.0.1.001.bin
switch(boot)# boot ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
C、
loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# init system
switch(boot)# reload
switch(boot)# boot ucs-6300-k9-system.5.0.2.N1.3.02d56.bin
D、
loader> dir
loader> boot ucs-6300-k9-kickstart.5.0.2.N1.3.02d56.bin
switch(boot)# copy ics-manager-k9.1.4.1k.bin nuova-sim-mgmt-nsg.0.1.001.bin
switch(boot)# load ucs-6300-k9-system.5.0.2.N1.3.02d56.bin

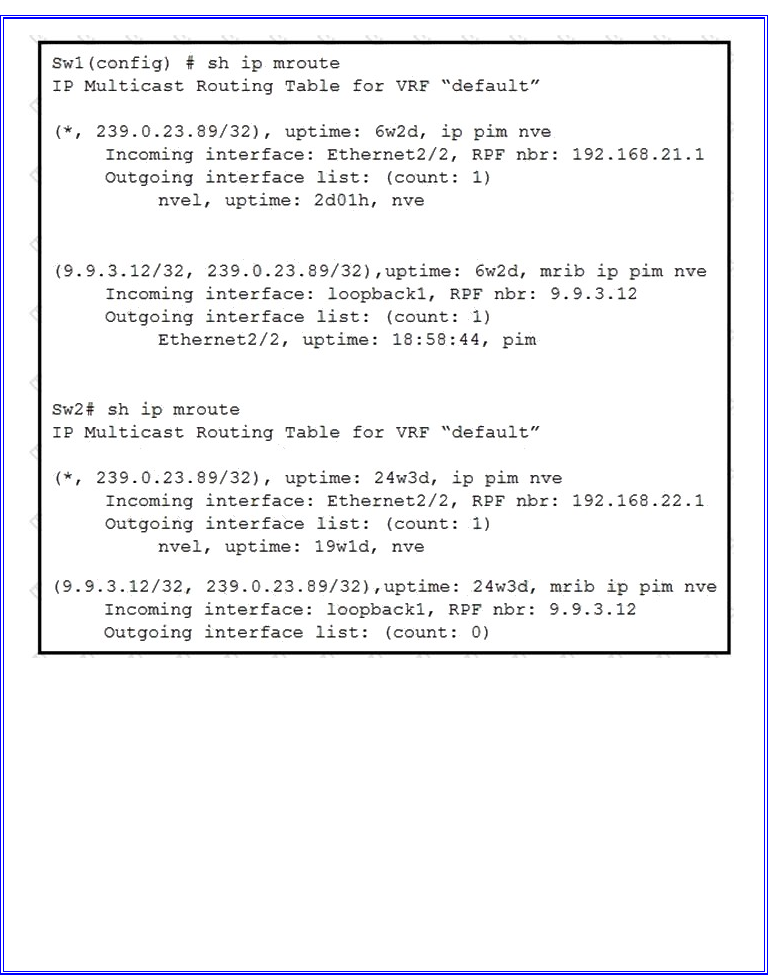

单选题 Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?
A、Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
B、Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
C、Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
D、Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

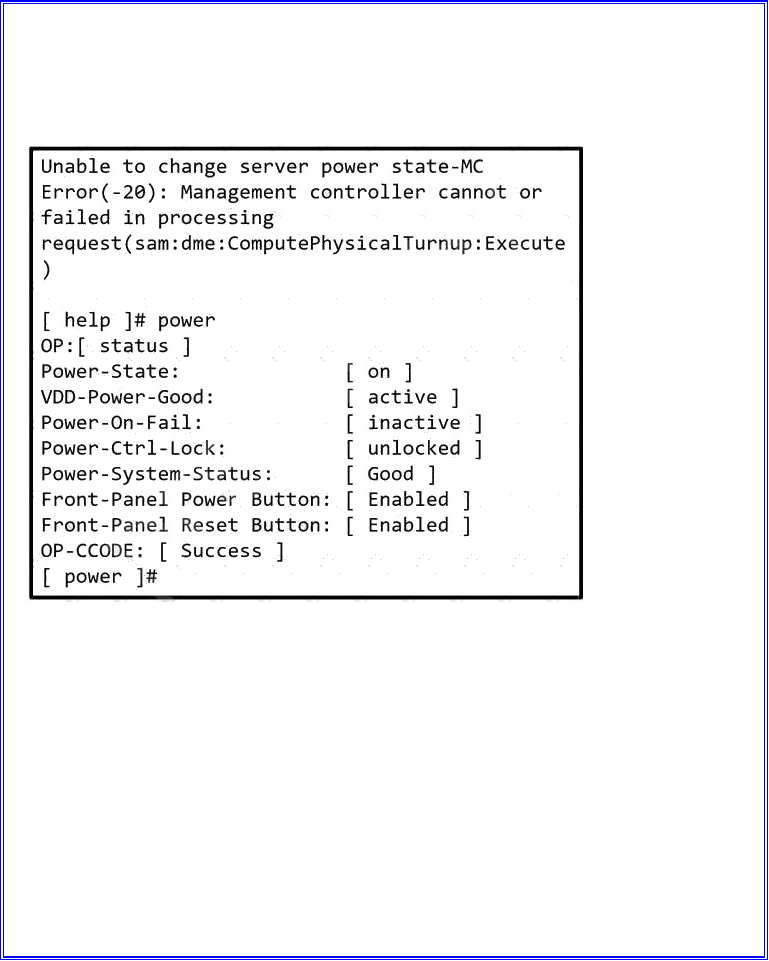

单选题 An engineer monitors a Cisco UCS server logs and discovers a blade discovery issue. Which procedure resolves the issue?
A、
1. Verify the server power module.
Decommission the faulty module.
Insert a new power module.
Recommission the new module.
B、
1. Verify that server platform power is failed
Resolve the platform power issue.
Reboot the server.Recommission the server.
C、
. Verify the FSM status on the server.
Decommission the impacted server.
Reset the slot where the server is located.
Recommission the server.
D、
1. Verify that the power on self-test operation is failed.
Verify that the server firmware is corrupted.
Decommission the server firmware

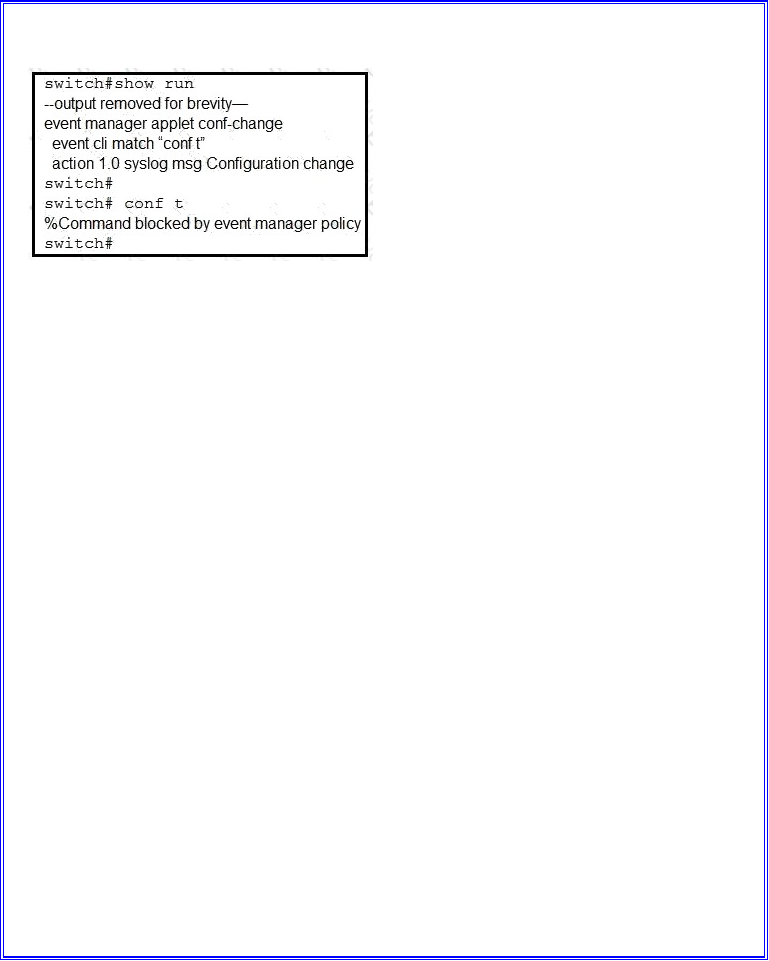

Recommission the server with new firmware.单选题 Refer to the exhibit.A network engineer configures an EEM script to get a syslog notification after a configuration change. This message appears when the engineer must make a new configuration to this switch. Which configuration did the engineer neglect to apply in the script for it to function properly?
A、event cli match ‘configure terminal’
B、event policy-default count 1 time 100
C、event syslog occurs 10
D、action 2.0 event-default
单选题 Refer to the exhibit.A web browser displays a “not secure” warning message when accessing the web interface of Cisco UCS Manager. Which action resolves the issue?
A、Load third-party certificate to UCS Manager.
B、Use the correct TCP port for HTTPS.
C、Use a supported web browser.
D、Use a supported version of UCS Manager.

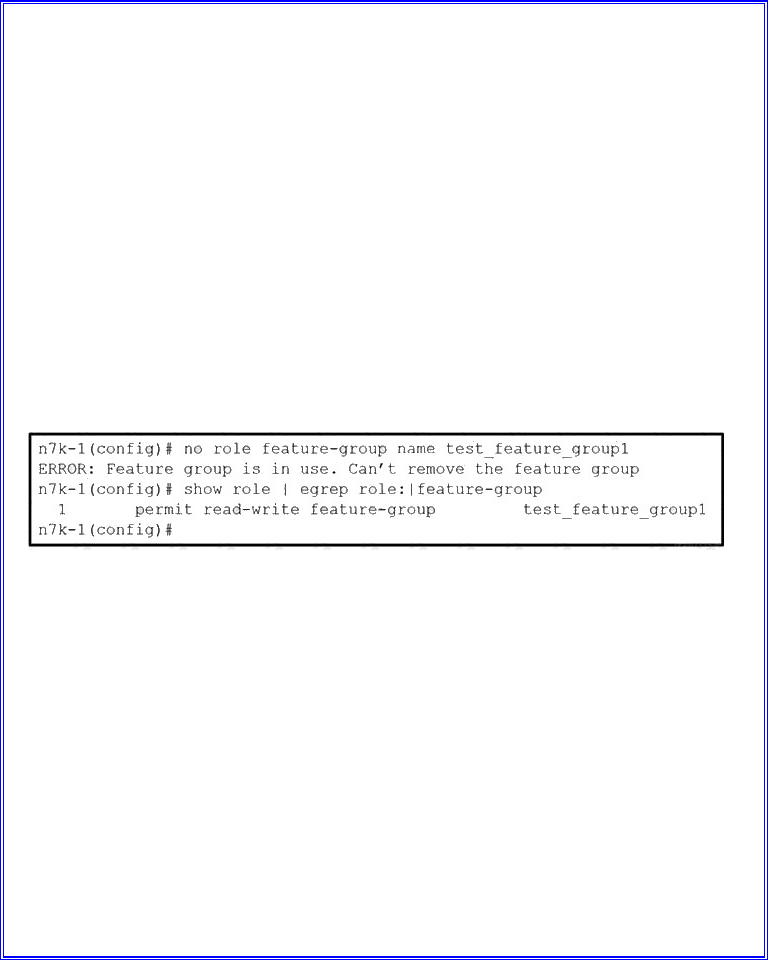

单选题 A network administrator must delete a feature group from a Cisco Nexus 5000 Series Switch. Which action resolves the issue?
A、Detach the association with the no rule command within the role configuration mode
B、Detach the association with the no role command within the feature-group configuration mode
C、Detach the association with the no rule command within the feature-group configuration
D、Detach the association with the no role command within the role configuration mode
单选题 A request to activate the port security database is rejected. Which action do you perform to investigate the cause of the issue?
A、Enable the auto-learning feature.
B、Use the force option to identify rejected devices.
C、Find conflicting entries between the active and configuration databases.
D、Verify that devices are fully attached to the active database.
单选题 A network engineer is implementing the Cisco ACI Fabric and notices that the Leaf-1 switch is registered, has an assigned name, but is displayed as inactive in the APIC. After further investigation, it became clear that the leaf switch was recently moved from another Cisco ACI environment. Which action resolves the problem?
A、Clean reload the Leaf-1 switch
B、Define the new TEP address for Leaf-1
C、Change the clock offset from low to high between apic 1 and Leaf-1
D、Modify the ISIS interface peering IP address between apic 1 and Leaf-1
2022-05-17
共121道
